DECHUANG Deepkaler 181-4-5110 Telescopic Hydraulic Cylinder for Dump Truck

181-4-5110

BRAND DECHUANG

MODEL 181-4-5110

VEHICLE TYPE Heavy Duty Dump Truck / Tipper Truck

PRODUCT NAME Telescopic Hydraulic Cylinder

HYDRAULIC CYLINDER BRAND Deepkaler

PRODUCT TYPE Front-End Multi-Stage Telescopic Hydraulic Cylinder

INQUIRY NOW WHATSAPP

Configuration, export documentation and worldwide delivery support are available.

Verified sourcingExport documentsGlobal delivery

PRODUCT DETAILS

Model: 181-4-5110
Product: Front-End Telescopic Hydraulic Cylinder
Hydraulic Cylinder Brand: Deepkaler
Cylinder Diameter: 181 mm
Number of Stages: 4 Stages
Stroke: 5110 mm
Application: Heavy Duty Dump Truck / Tipper Truck
Installation Type: Front Mount / Front End
System: Dump Body Hydraulic Lifting System
Function: Dump Body Lifting and Tipping
Condition: New
Supplier: DECHUANG

DECHUANG supplies the Deepkaler 181-4-5110 multi-stage telescopic hydraulic cylinder for compatible heavy-duty dump trucks and tipper trucks. The cylinder is designed for dump body hydraulic lifting and tipping applications and can be supplied for replacement, maintenance and new hydraulic lifting system installations.

The 181-4-5110 configuration features a 181 mm cylinder diameter, 4-stage telescopic structure and 5110 mm stroke. Before ordering, customers should confirm the cylinder model, mounting configuration and dump truck hydraulic system requirements.

Product Specifications

Product Name	Telescopic Hydraulic Cylinder
Model	181-4-5110
Supplier Brand	DECHUANG
Hydraulic Cylinder Brand	Deepkaler
Product Type	Front-End Multi-Stage Telescopic Hydraulic Cylinder
Cylinder Diameter	181 mm
Number of Stages	4 Stages
Stroke	5110 mm
Installation Type	Front Mount / Front End
Vehicle Type	Heavy Duty Dump Truck / Tipper Truck
System	Dump Body Hydraulic Lifting System
Function	Dump Body Lifting and Tipping
Condition	New
Product Category	Chassis Parts / Hydraulic System Parts

Applications

DECHUANG Deepkaler 181-4-5110 telescopic hydraulic cylinder is designed for compatible heavy-duty dump trucks and tipper trucks using front-end hydraulic lifting systems.

The cylinder is installed between the truck chassis and the front section of the dump body. During unloading, hydraulic pressure extends the telescopic stages and raises the cargo body to the required tipping angle.

The 4-stage telescopic structure provides a long 5110 mm stroke while allowing the cylinder to maintain a comparatively compact retracted installation length. This configuration is suitable for heavy-duty dump body lifting applications where a long tipping movement is required.

The 181-4-5110 hydraulic cylinder can be used for replacement of compatible worn or damaged cylinders and for maintenance of existing dump truck hydraulic lifting systems.

Typical applications include heavy-duty dump trucks operating in mining, quarrying, construction, infrastructure development, earthmoving and bulk material transportation.

Hydraulic cylinder compatibility should not be determined only by the truck brand or vehicle model. Dump body dimensions, mounting position, original cylinder model and hydraulic system configuration should also be checked.

Before ordering, please confirm the complete model 181-4-5110. Customers can also provide the original cylinder nameplate, truck model, dump body dimensions and photos of the cylinder and mounting points for additional product matching.

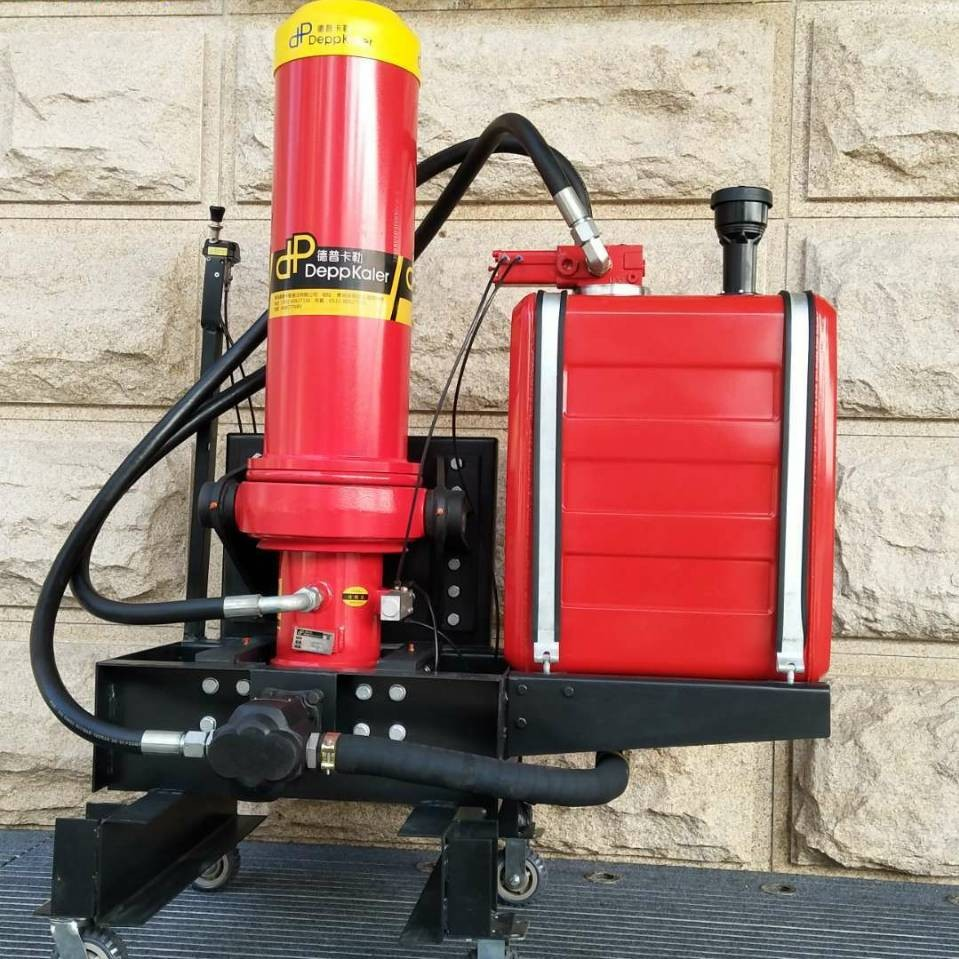

DECHUANG can also supply related dump truck hydraulic components including hydraulic pumps, proportional control valves, limit valves, hydraulic oil tanks, hoses, brackets and complete hydraulic system kits.

Why Choose DECHUANG

DECHUANG supplies Deepkaler telescopic hydraulic cylinders and dump truck hydraulic lifting system components for international heavy-duty commercial vehicle markets.

Our hydraulic product range includes multi-stage telescopic cylinders, hydraulic pumps, proportional valves, limit valves, hydraulic oil tanks, hoses, mounting components and complete dump truck hydraulic system solutions.

DECHUANG supports product matching according to hydraulic cylinder model, truck configuration, dump body dimensions and original installation information, helping customers select the correct replacement cylinder.

We support individual replacement orders, mixed spare parts purchasing and bulk B2B supply for truck parts distributors, hydraulic repair workshops, dump truck fleets, construction companies and mining projects.

Customers searching for Deepkaler 181-4-5110, 181 mm telescopic cylinder, 4-stage hydraulic cylinder, 5110 mm stroke cylinder or dump truck front-end hydraulic cylinder can contact DECHUANG for product matching and quotation.
