DECHUANG Deepkaler 181-4-5110 Telescopic Hydraulic Cylinder for Dump Truck

Model: 181-4-5110
Product: Front-End Telescopic Hydraulic Cylinder
Hydraulic Cylinder Brand: Deepkaler
Cylinder Diameter: 181 mm
Number of Stages: 4 Stages
Stroke: 5110 mm
Application: Heavy Duty Dump Truck / Tipper Truck
Installation Type: Front Mount / Front-End
System: Dump Body Hydraulic Lifting System
Function: Dump Body Lifting, Tipping and Replacement
Condition: New
Supplier: DECHUANG

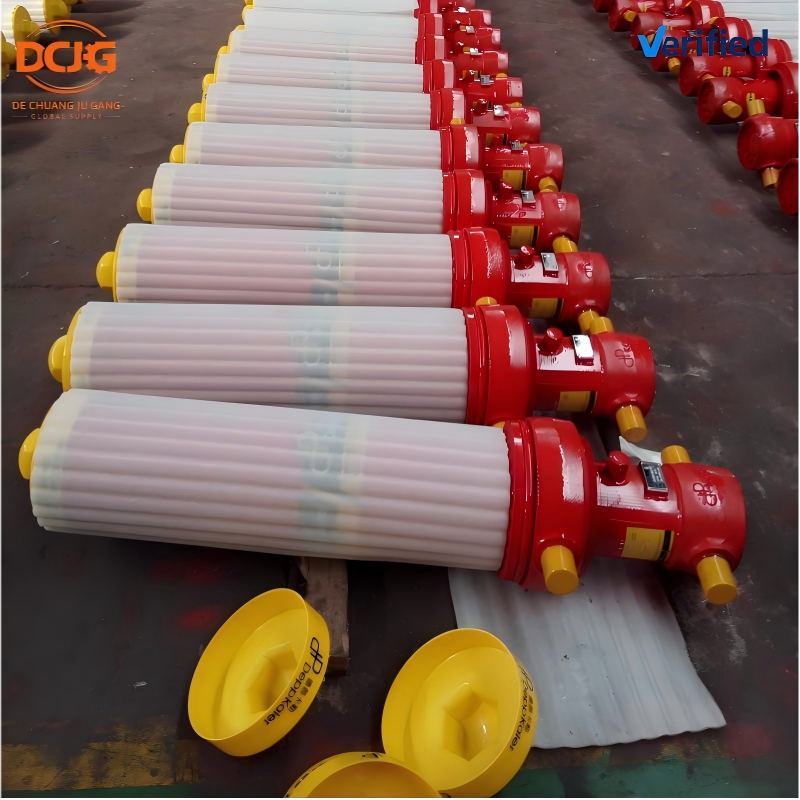

DECHUANG supplies the Deepkaler 181-4-5110 multi-stage telescopic hydraulic cylinder for compatible heavy-duty dump trucks and tipper trucks. The cylinder is designed for front-end dump body lifting systems and can be used for replacement, repair and maintenance of compatible truck hydraulic tipping systems.

The 181-4-5110 configuration features a 181 mm cylinder diameter, 4-stage telescopic structure and 5110 mm stroke. Its multi-stage design provides the long lifting travel required for dump body tipping while maintaining a compact installation arrangement when the cylinder is retracted.

Product Specifications

Product Name	Front-End Telescopic Hydraulic Cylinder
Model	181-4-5110
Supplier Brand	DECHUANG
Hydraulic Cylinder Brand	Deepkaler
Product Type	Multi-Stage Telescopic Hydraulic Cylinder
Cylinder Diameter	181 mm
Number of Stages	4 Stages
Stroke	5110 mm
Installation Type	Front Mount / Front-End
Vehicle Type	Heavy Duty Dump Truck / Tipper Truck
System	Dump Body Hydraulic Lifting System
Main Function	Dump Body Lifting and Tipping
Application Type	Replacement / Repair / Hydraulic System Maintenance
Condition	New
Product Category	Chassis Parts / Hydraulic System Parts

Applications

DECHUANG Deepkaler 181-4-5110 telescopic hydraulic cylinder is designed for compatible heavy-duty dump trucks and tipper trucks equipped with front-end hydraulic lifting systems.

The cylinder is installed between the truck chassis and the front section of the dump body. When hydraulic pressure is supplied, the telescopic stages extend sequentially and raise the cargo body to the required tipping angle.

The 4-stage telescopic configuration provides a 5110 mm stroke, making the cylinder suitable for applications requiring substantial dump body lifting travel.

The 181-4-5110 cylinder can be used to replace compatible worn, leaking or damaged hydraulic cylinders in existing dump truck lifting systems.

Typical applications include heavy-duty dump trucks working in mining, quarrying, construction, infrastructure development, earthmoving, aggregate transport and bulk material transportation.

Common replacement situations include hydraulic oil leakage, damaged seals, abnormal telescopic movement, worn cylinder stages, deformation, insufficient lifting performance or internal hydraulic leakage.

Hydraulic cylinder compatibility depends on the complete lifting system configuration. Customers should not select a replacement cylinder only according to truck brand or cargo body size.

Before ordering, please confirm the complete model 181-4-5110. Customers can also provide the original cylinder nameplate, truck model, dump body dimensions and clear photos of the cylinder and mounting points for additional compatibility confirmation.

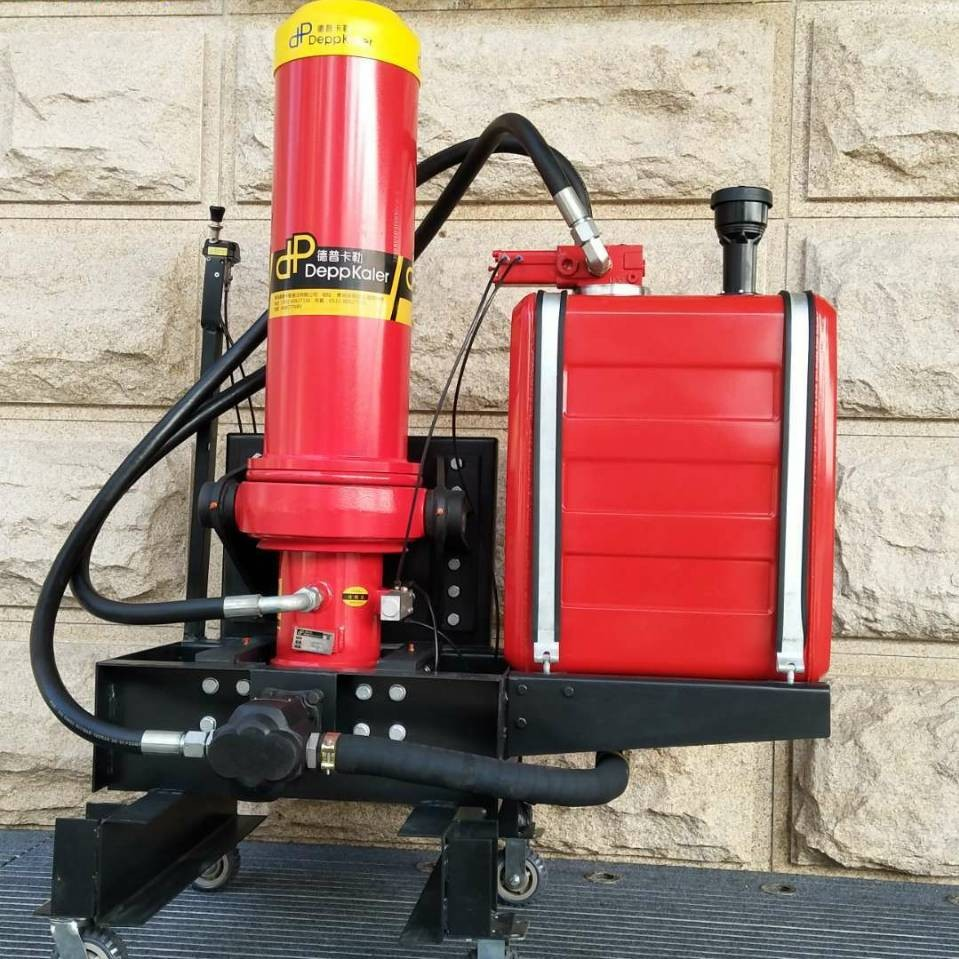

DECHUANG can also supply related dump truck hydraulic system components including hydraulic pumps, proportional control valves, limit valves, hydraulic oil tanks, hydraulic hoses, mounting brackets and complete hydraulic lifting system kits.

Why Choose DECHUANG

DECHUANG supplies Deepkaler telescopic hydraulic cylinders and dump truck hydraulic system components for international heavy-duty commercial vehicle markets.

Our hydraulic parts range includes multi-stage telescopic cylinders, hydraulic pumps, proportional control valves, limit valves, hydraulic oil tanks, hoses, brackets and complete dump truck hydraulic system solutions.

DECHUANG supports product matching according to hydraulic cylinder model, original nameplate information, truck configuration, dump body dimensions and installation details.

We support individual replacement orders, mixed spare parts purchasing and bulk B2B supply for truck parts distributors, hydraulic repair workshops, dump truck fleets, mining companies and construction projects.

Customers searching for Deepkaler 181-4-5110, 181 mm hydraulic cylinder, 4-stage telescopic cylinder, 5110 mm stroke cylinder or dump truck replacement hydraulic cylinder can contact DECHUANG for product matching and quotation.
