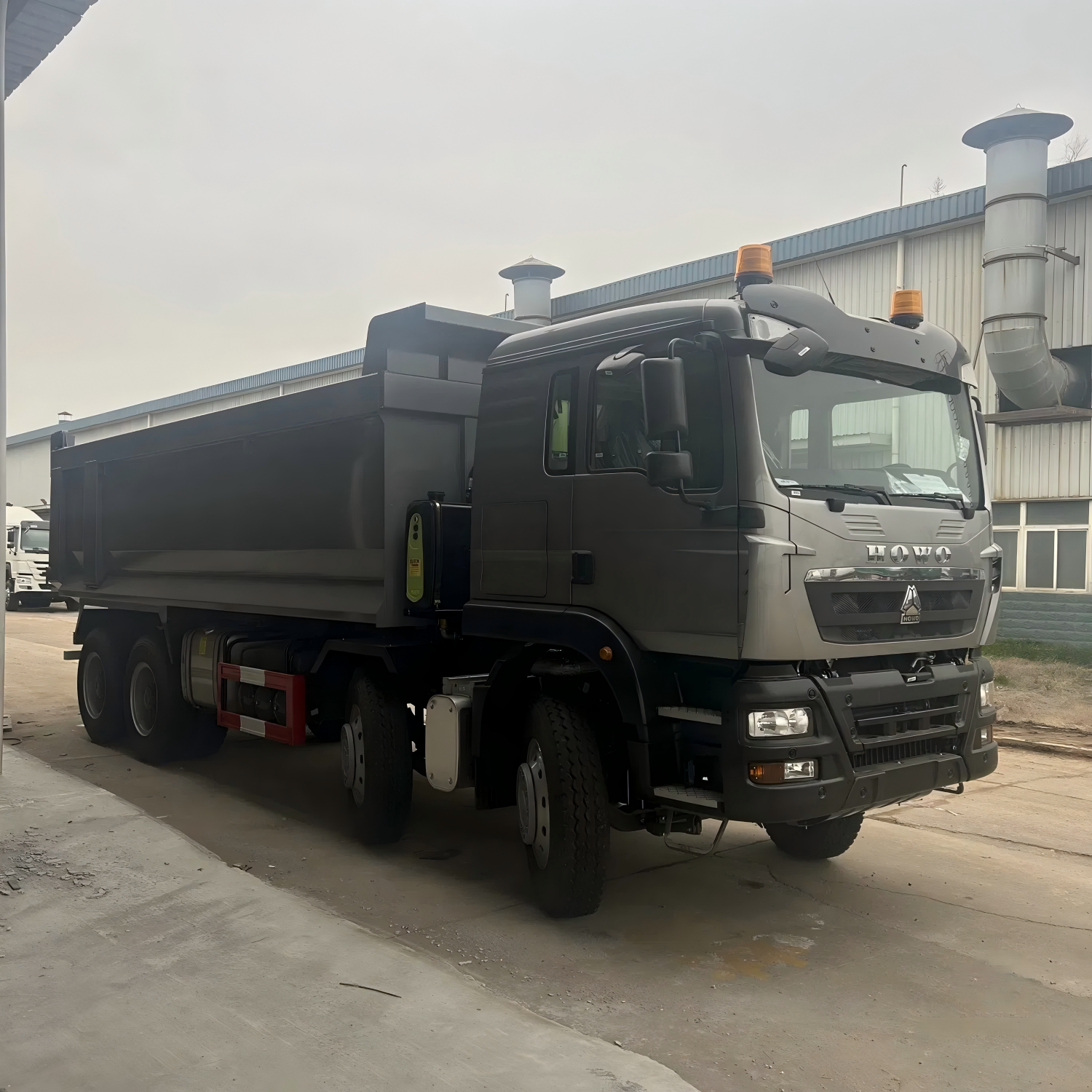

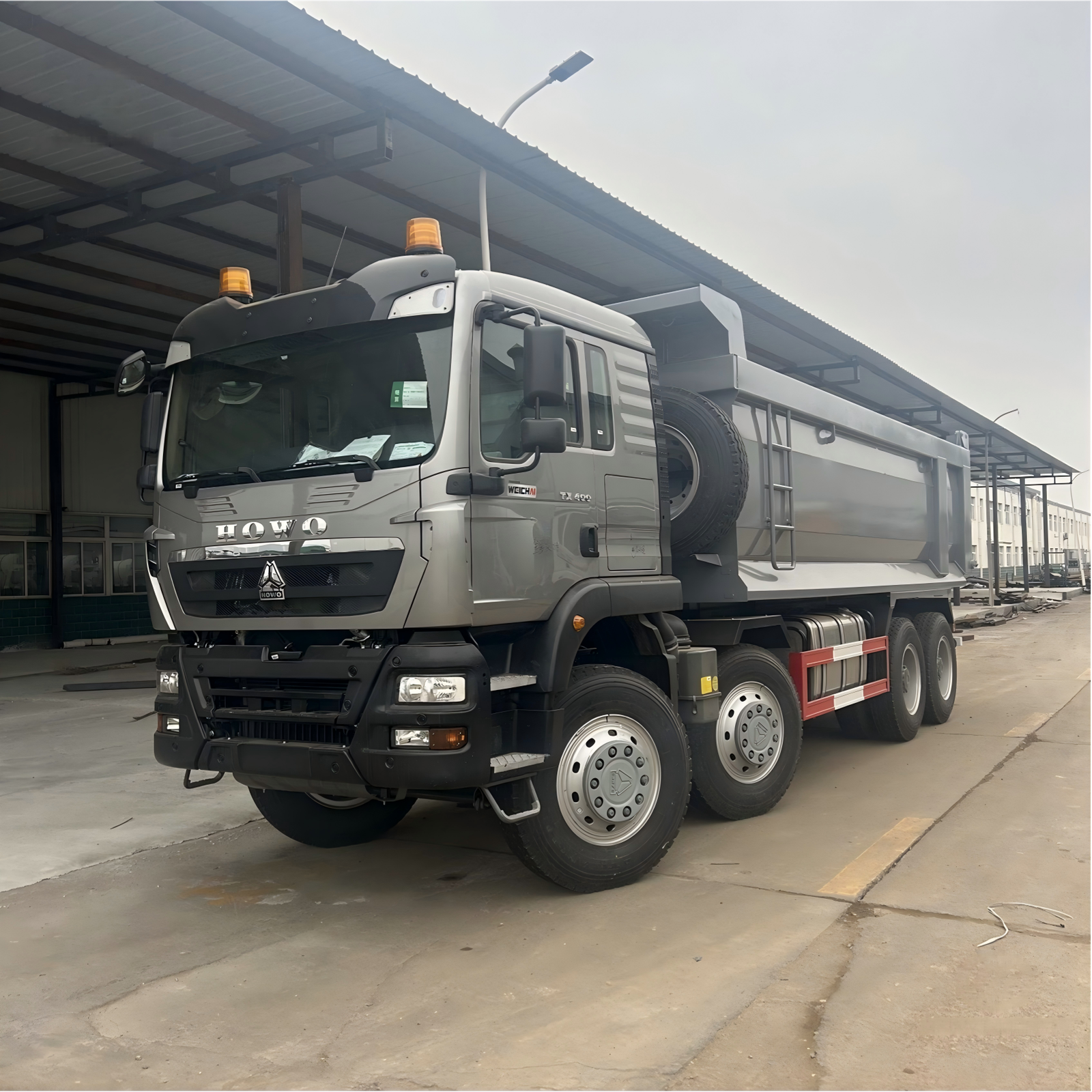

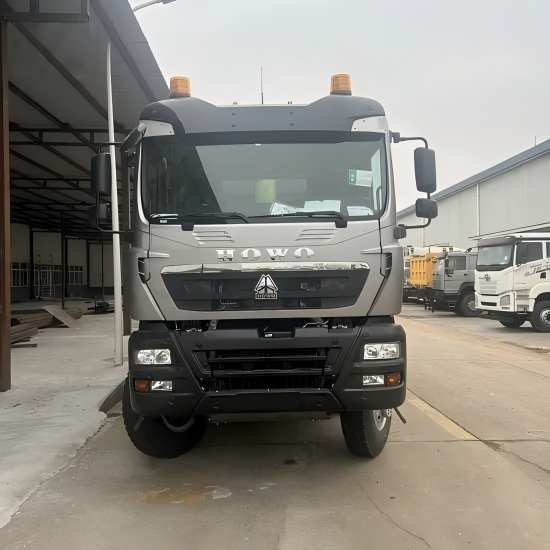

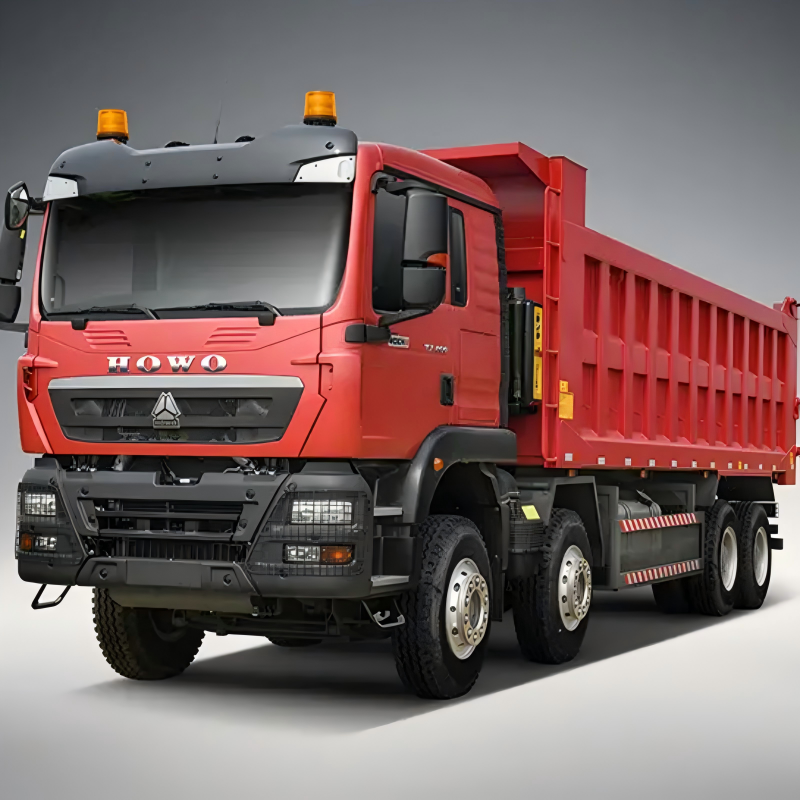

DECHUANG SINOTRUK HOWO TX 8×4 Dump Truck ZZ3317N3847B1

Main Specifications

Product Name	SINOTRUK HOWO TX 8×4 Dump Truck
Vehicle Model	ZZ3317N3847B1
Supplier Brand	DECHUANG
Truck Brand	SINOTRUK HOWO
Series	HOWO TX
Vehicle Type	Heavy Duty Dump Truck / Tipper Truck
Drive Type	8×4
Steering Position	LHD / RHD Available
Engine Model	WP12.400E201
Engine Brand	Weichai
Engine Power	400 HP
Emission Standard	Euro II
Transmission	HW19710 Manual Transmission
Gear Configuration	10 Forward + 2 Reverse
Cabin	TX-F Long Cabin, Single Sleeper, with Air Conditioner
Front Axle	VGD9500
Front Axle Capacity	9500 kg
Rear Axle	HC16 Double Rear Axle
Rear Axle Capacity	2 × 16000 kg
Steering System	Bosch Brand Steering with Hydraulic Assistance
Tire Specification	12.00R20
Number of Tires	11 Pieces Including One Spare Tire
Fuel Tank	300 L
Cargo Body Dimensions	7300 × 2300 × 1500 mm
Cargo Body Thickness	Bottom 8 mm / Side 6 mm
Cargo Body Type	Rectangle Cargo Box
Lifting System	Front Lifting Hydraulic System
Overall Dimensions	10500 × 2550 × 3500 mm
Transport Package	Nude with Wax Spraying
HS Code	8704223000
Application	Mining / Construction / Heavy-Load Bulk Material Transport
Condition	New

Applications

DECHUANG SINOTRUK HOWO TX ZZ3317N3847B1 8×4 dump truck is designed for heavy-load bulk material transportation in mining, construction, quarrying and infrastructure projects.

The 8×4 chassis configuration provides stronger axle load distribution than a 6×4 dump truck, making it suitable for larger cargo body volume and heavier engineering transport applications.

The WP12.400E201 Weichai engine provides 400 horsepower and Euro II emission configuration for heavy-duty dump truck operation.

The HW19710 manual transmission with 10 forward and 2 reverse gears is matched with the HOWO TX dump truck drivetrain for construction and mining transportation.

The VGD9500 front axle and HC16 double rear axle configuration provide the chassis support required for loaded operation on demanding construction roads and industrial transport routes.

The 7300 × 2300 × 1500 mm rectangular cargo box with 8 mm bottom plate and 6 mm side plate is suitable for transporting sand, gravel, ore, coal, aggregate, soil and construction materials.

The front lifting hydraulic system supports efficient unloading and tipping operation for bulk material transport.

Typical applications include mine hauling, quarry transport, road construction, infrastructure projects, earthmoving, industrial material handling and heavy-duty construction logistics.

Before ordering, customers should confirm steering position, cargo body material and thickness, tire specification, hydraulic lifting configuration, destination country regulations and operating environment.

Why Choose DECHUANG

DECHUANG supplies SINOTRUK HOWO TX dump trucks, tractor trucks, special-purpose vehicles and heavy-duty truck spare parts for international markets.

We support truck configuration matching according to required payload, cargo body size, operating road conditions, lifting system and destination market requirements.

Our supply scope includes complete HOWO trucks as well as Weichai engines, transmissions, axles, hydraulic lifting systems, cab parts and chassis components.

DECHUANG supports B2B supply for mining companies, construction contractors, infrastructure projects, transportation fleets and commercial vehicle distributors.
