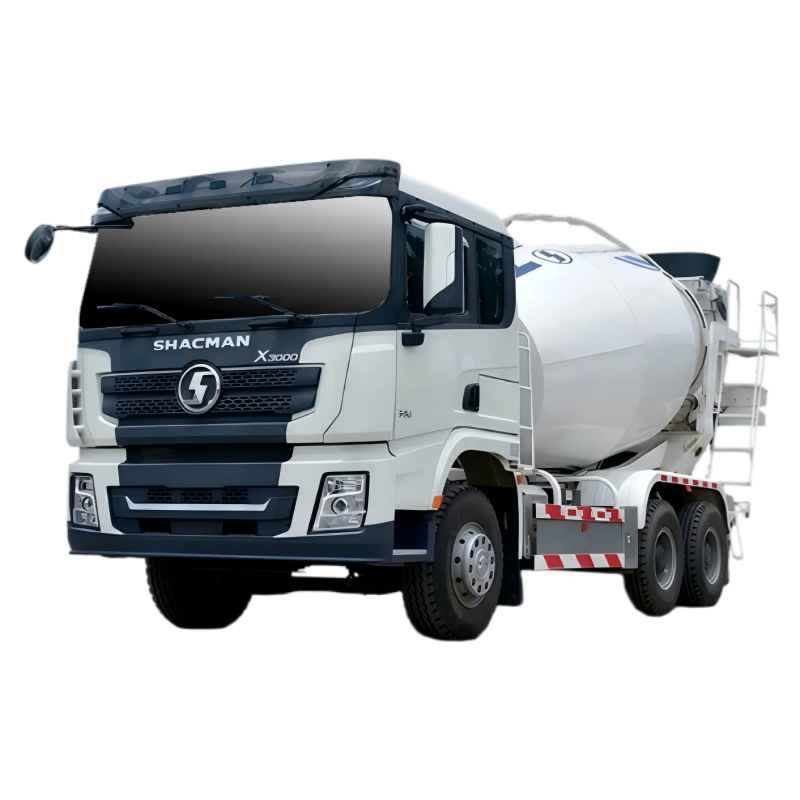

Shacman X3000 6×4 Mixer Truck
SX5258GJB6R364C
Configuration, export documentation and worldwide delivery support are available.
PRODUCT DETAILS
Main Specifications
| Product Name | SHACMAN X3000 6×4 Concrete Mixer Truck |
| Vehicle Model | SX5258GJB6R364C |
| Supplier Brand | DECHUANG |
| Truck Brand | SHACMAN |
| Series | X3000 |
| Vehicle Type | Concrete Mixer Truck / Cement Mixer Truck |
| Drive Type | 6×4 |
| Driver Position | Left-Hand Drive |
| Engine Brand | Cummins |
| Engine Model | ISM11E5 345 + PTO (JACOB) |
| Engine Power | 253 kW / 345 HP |
| Displacement | 10.8 L |
| Emission Standard | Euro V |
| Transmission | FAST 10JSD180T |
| Clutch | 430 mm Diaphragm Clutch |
| Front Axle | HANDE MAN 7.5T |
| Rear Axle | 16T MAN Double Reduction Axle |
| Rear Axle Ratio | 5.262 |
| Wheelbase | 3575+1400 mm |
| Frame | 850 × 300 mm (8+7) |
| Suspension | Front and Rear Multi-Leaf Spring |
| Fuel Tank | 300 L Aluminum Alloy Fuel Tank |
| Tire Specification | 12.00R20 |
| Number of Tires | 10+1 |
| Brake System | Dual-Circuit Compressed Air Brake |
| Maximum Speed | 75 km/h |
| Application | Ready-Mix Concrete Transportation |
| Condition | New |
Applications
DECHUANG SHACMAN X3000 SX5258GJB6R364C 6×4 concrete mixer truck is designed for ready-mix concrete transportation in construction, road building and infrastructure projects.
The 6×4 chassis configuration provides the traction and load-bearing capability required for concrete mixer operation on construction roads, urban project sites and industrial working environments.
The Cummins ISM11E5 345 engine delivers 253 kW / 345 HP and is matched with a FAST 10JSD180T transmission, providing stable power output for loaded concrete transportation.
The vehicle uses a 3575+1400 mm wheelbase and a 16T MAN double-reduction rear axle with 5.262 ratio, supporting heavy-duty construction transport and mixer truck operation.
The dual-circuit compressed air brake system, multi-leaf spring suspension and reinforced 850 × 300 mm frame are suitable for demanding concrete transport applications.
Typical applications include ready-mix concrete plants, commercial building projects, road construction, bridge construction, municipal engineering, industrial parks and infrastructure development.
The final mixer drum volume, hydraulic system configuration and upper body specification should be confirmed according to customer requirements and destination market regulations.
Before ordering, customers should confirm the required mixer drum capacity, engine configuration, steering position, emission standard and local road compliance requirements.
Why Choose DECHUANG
DECHUANG supplies SHACMAN X3000 concrete mixer trucks, dump trucks, tractor trucks, special-purpose vehicles and truck spare parts for international commercial vehicle markets.
We support vehicle configuration matching according to mixer capacity, road conditions, construction environment, engine requirements and destination country regulations.
Our supply scope includes complete SHACMAN trucks as well as Cummins engines, FAST transmissions, MAN and HANDE axle components, hydraulic system parts, cab parts and chassis spare parts.
DECHUANG supports B2B supply for ready-mix concrete companies, construction contractors, infrastructure projects, transportation fleets and commercial vehicle distributors.
