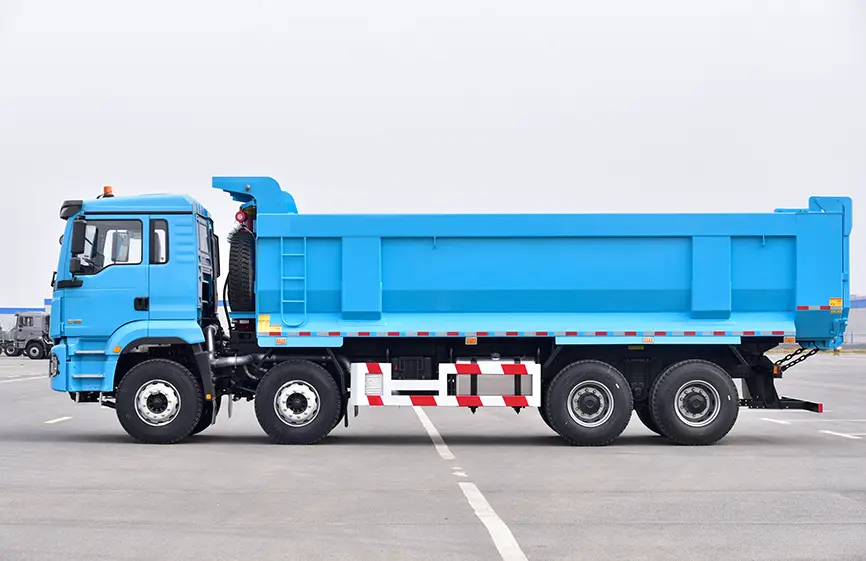

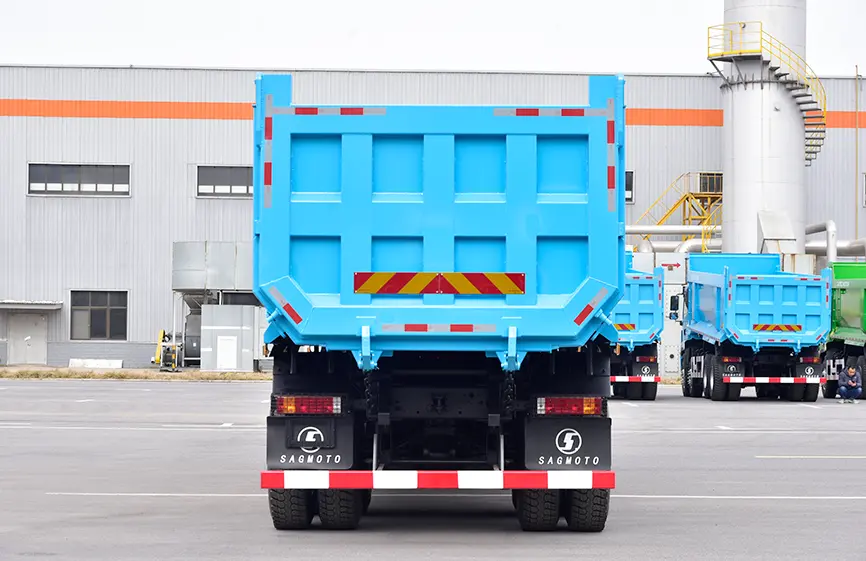

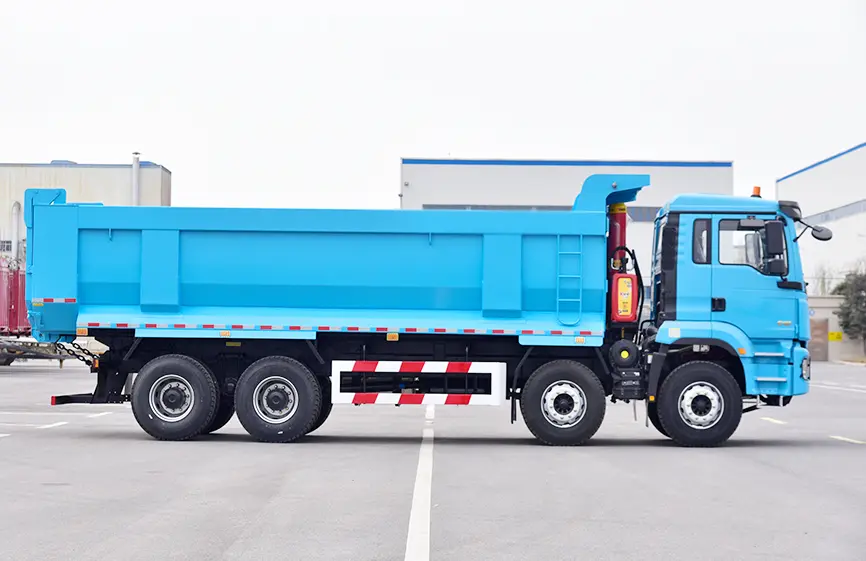

SHACMAN X3S 6×4 Dump Truck
Model – SX3253M3M39J3840
Configuration, export documentation and worldwide delivery support are available.
PRODUCT DETAILS
| SHACMAN X3S 6X4 DUMP TRUCK | |
|
Model |
SX3253M3M39J3840 |
|
Driving position |
left standard rudder |
|
Driving type |
6*4 |
|
Engine |
Cummins ISME 450 30 |
|
Effluent standard |
Europe 3 |
|
Transmission |
Fast 810JSD180(cast iron)-QH50 |
|
Vehicle speed ratio |
16t/ two-stage/5.92 |
|
Frame (mm) |
850×300 /8+7 |
|
Wheel base(mm) |
3775+1400 |
|
Front axle |
9.5t |
|
Suspension |
10/12 (four main films+four horseback riding) |
|
Fuel tank |
400L Aluminum fuel tank |
|
Wheels and tires |
12.00R20/18PR |
|
Other configurations |
1. Cab: X3s medium-long and half-high roof, airbag shock-absorbing main seat, fixed auxiliary seat, four-point mechanical mount, halogen headlights, multi-function steering wheel, lever rearview mirror, automatic constant temperature air conditioner, electric window, 5-inch LCD screen combination instrument, Bluetooth player (with 5-inch screen)., manual turnover, central locking (1 central key +2 mechanical keys), M3000S metal bumper (bumper can be the same color as the cab or black bumper), cast outrigger/central towing hook, three-step stepping and sunshade; 2. Chassis: 180Ah maintenance-free battery, iron gas cylinder, spare wheel rack with spare wheel, oil-bath air filter, headlight and taillight protection grille, 50t jack, water tank protection grille+oil pan protection grille (optional in desert area: windproof oil pan protection grille). 3. Logo: with non-luminous SQ logo, SAGMOTO logo, English or Chinese and Englis |
Product Introduction
The SHACMAN X3S 6×4 Dump Truck is a heavy-duty tipper truck designed for mining, construction, and bulk material transportation.
As a practical model in the SHACMAN X3S series, it combines strong loading capacity, reliable power performance, and excellent adaptability for overseas working environments.
Equipped with a powerful Weichai engine, heavy-duty transmission, reinforced chassis, and durable suspension system, the SHACMAN X3S 6×4 Dump Truck provides stable operation in harsh conditions such as mines, quarries, and large construction sites.
Model: SX3253M3M39J3840
Product Specifications
| Item | Specification |
|---|---|
| Brand | SHACMAN |
| Series | X3S |
| Model | SX3253M3M39J3840 |
| Vehicle Type | 6×4 Dump Truck |
| Drive Type | 6×4 |
| Engine | Weichai WP12 Engine |
| Horsepower | 430 HP |
| Emission Standard | Euro 6 |
| Transmission | Heavy Duty Manual Transmission |
| Front Axle | 7.5 Ton |
| Rear Axle | 16 Ton ×2 |
| Tire Size | 12.00R20 |
| Suspension | Heavy Duty Multi-leaf Spring Suspension |
| Cargo Box Type | U-shaped Dump Body |
| Application | Mining / Construction / Material Transportation |
Applications
The SHACMAN X3S SX3253M3M39J3840 6×4 Dump Truck is widely used for:
- Mining material transportation
- Quarry operations
- Sand and gravel transportation
- Construction material hauling
- Infrastructure projects
- Bulk cargo transportation
Suitable overseas markets:
- Africa mining projects
- Southeast Asia construction sites
- Middle East heavy transportation
- Central Asia logistics projects
Why Choose Us
- Professional SHACMAN truck export supplier
- Original SHACMAN heavy-duty truck supply
- Competitive factory-direct pricing
- Reliable configuration for overseas markets
- Support customized truck specifications
- Experienced in mining and construction vehicle export
- Complete export service including logistics and after-sales support
Contact Information
Website:
www.dechuangsupplychain.com
Alibaba International Store:
https://sxdcjgmy.en.alibaba.com
WhatsApp:
+86 153 4928 5748
Request a quotation for this truck.
Send the required quantity, destination port and any optional configuration. Our team will confirm the specification and delivery plan.
