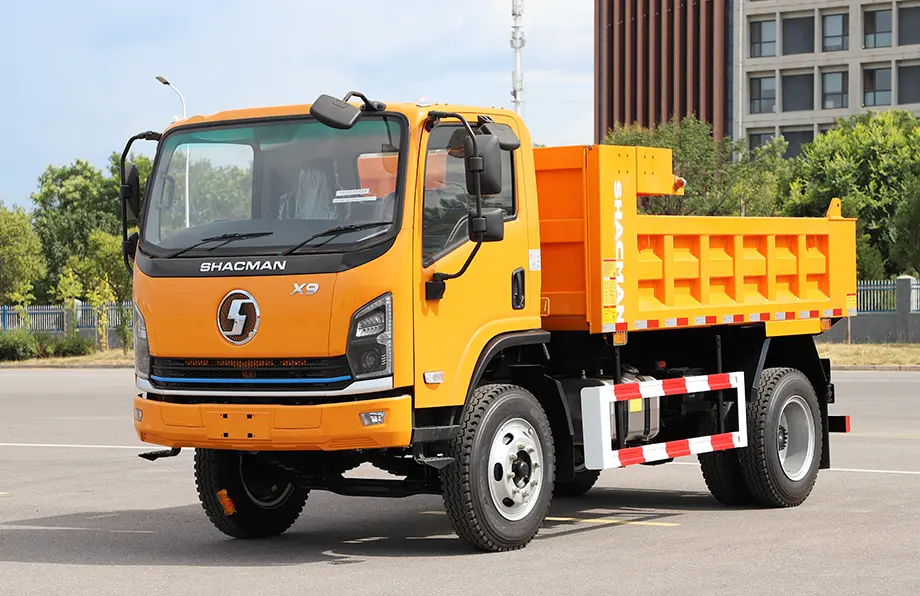

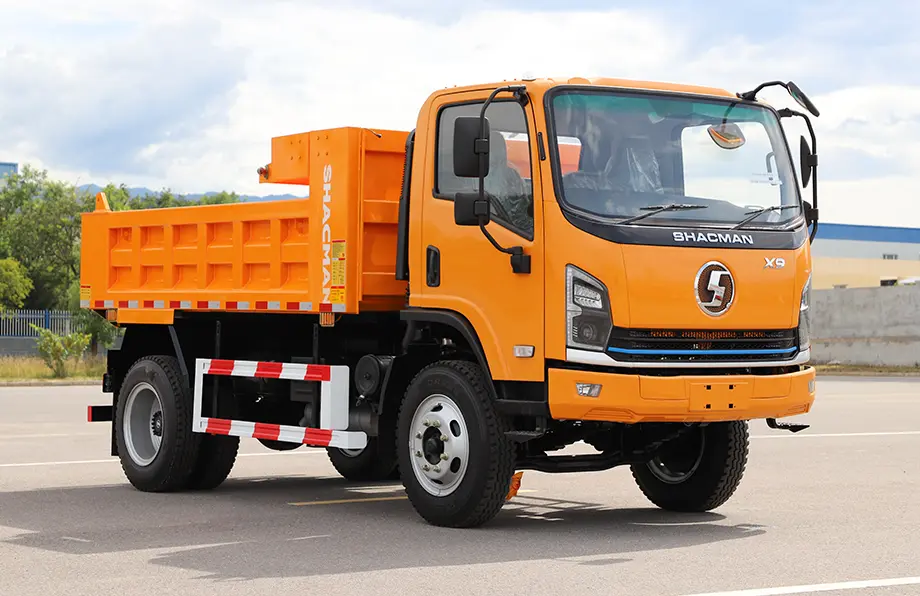

Shacman X9 Dump Truck SX3185EY214B3811
Type of vehicle – SX3183E2Y14B3811
Configuration, export documentation and worldwide delivery support are available.
PRODUCT DETAILS
| SHACMAN X9 DUMP TRUCK | |||
| Model | SX3183E2Y14B3811 | ||
| Basic Configuration | Driving Type | 4×2 | |
| GVW | ≤ 18T | ||
| Vehicle Body（mm） | X7/2120 | ||
| Engine | Engine Power | 140 | |
| Emissions | EuroⅡ | ||
| Wheelbases（mm） | 3800 | ||
| Chassis（mm） | 800X250/7+4 | ||
| shifting | 8Forward GearMT+2Reverse Gear | ||
| Front Axle | 3.2T | ||
| Rear Axle | 10T/6.33 | ||
| Leaf Spring | 9/11+8 | ||
| Tyres | 9.00R20/16PR | ||
| Cargo Body Dimensions（mm） | 4200×2200×800 | ||
| Oil Tank | 130L Iron | ||
| Functional configuration | airbag shock-absorbing main seat | ● | |
| Automatic Temperature Air Conditioner | ● | ||
| LCD Combination Instrument Panel | ● | ||
| Multifunctional Steering Wheel | ● | ||
| Air Conditioner | ● | ||
| ABS | ● | ||
| Multimedia | ○ | ||
| Metallic Paint | ○ | ||
| ●Standard Configuration○Optional/No such Configuration | |||
Product Introduction
The SHACMAN X9 Dump Truck SX3185EY214B3811 is a compact and efficient light-duty tipper truck designed for urban construction, rural transportation, municipal services, and small-scale material handling.
Built on the SHACMAN X9 chassis, this dump truck features a durable structure, flexible 4×2 drivetrain, and reliable hydraulic tipping system. It is designed for transporting sand, gravel, earthwork, construction waste, and agricultural materials in markets requiring high maneuverability and low operating costs.
With its compact size, easy maintenance, and strong adaptability, the SHACMAN X9 Dump Truck is an ideal solution for contractors, small fleets, and infrastructure projects in Africa, Southeast Asia, and emerging markets.
Product Specifications
| Item | Specification |
|---|---|
| Brand | SHACMAN |
| Series | X9 |
| Model | SX3185EY214B3811 |
| Vehicle Type | Dump Truck / Tipper Truck |
| Drive Type | 4×2 |
| Payload Capacity | 8-10 Tons |
| Wheel Configuration | 6 Wheels |
| Tipping System | Hydraulic Tipping System |
| Tipping Angle | 45° |
| Chassis | SHACMAN X9 Heavy Duty Chassis |
| Suspension | Leaf Spring Suspension |
| Application | Construction & Material Transportation |
Applications
The SHACMAN X9 Dump Truck is suitable for:
- Sand and gravel transportation
- Construction material delivery
- Earthwork transportation
- Municipal waste transportation
- Road maintenance projects
- Agricultural material transportation
Suitable export markets:
- Africa
- Southeast Asia
- Middle East
- Central Asia
