DECHUANG Side Wall Semi Trailer

Payload Capacity – 60-100T

PLACE OF ORIGIN Shandong, China

USE Shacman Truck Trailer

MATERIAL Steel

DIMENSION 12.5m×2.5m×3.4m (Can be Customized according to customers’ needs Dimension )

PAYLOAD 60-100T

TARE WEIGHT About 8.5Ton

INQUIRY NOW WHATSAPP

Configuration, export documentation and worldwide delivery support are available.

Verified sourcingExport documentsGlobal delivery

PRODUCT DETAILS

SHACMAN SIDE WALL SEMI TRAILER
Place of Origin	Shandong, China
Use	Shacman Truck Trailer
Material	Steel
Dimension	12.5m×2.5m×3.4m (Can be Customized according to customers’ needs Dimension )
Payload	60-100T
Tare weight	About 8.5Ton
Main beam	Q345B carbon steel “I” beam
Frame Floor	3mm-thick checkered plate
Axle	3/4/5 axles, FUWA / BPW / Derun brand
Landing Gear	JOST brand 28T lifting capacity
King Pin	2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension
Leaf Spring	90mm(W)16mm(T)10layer
Tire	12R22.5, 13R22.5, 12.00R20, 315/80R22.5, 385/65R22.5 optional
Valve	WABCO valve (specially intended for oversea market)
Electric system	One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Accessories	One standard tool box;one set of standard tools

Product Introduction

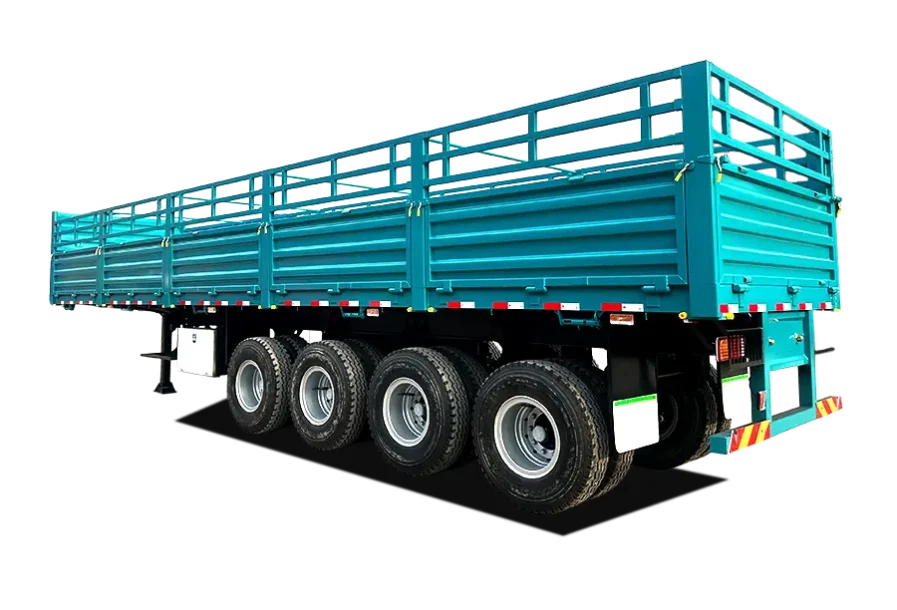

The DECHUANG Side Wall Semi Trailer is designed for the efficient transportation of general cargo, agricultural products, construction materials, bagged goods, and industrial materials. The side wall structure provides additional cargo protection while maintaining convenient loading and unloading.

Built with a reinforced steel frame and durable side wall panels, the trailer provides reliable performance for regional and long-distance freight transportation. The side walls help prevent cargo from shifting or falling during transit, making the trailer suitable for loose, packaged, and palletized goods.

Side wall height, platform dimensions, loading capacity, axle configuration, suspension system, tires, braking system, and other specifications can be customized according to customer requirements and local operating conditions.

Applications

The DECHUANG Side Wall Semi Trailer is a versatile solution for cargo that requires additional side protection during transportation. It is suitable for logistics companies, agricultural transportation, construction projects, factories, and general freight operations.
