DECHUANG ZX01017FY196 FC196-4-05390-001A-K0343 Hydraulic Hoist Cylinder for SHACMAN Dump Truck

ZX01017FY196

BRAND DECHUANG

SERIES FC196

MODEL FC196-4-05390-001A-K0343

VEHICLE TYPE Heavy Duty Dump Truck / Tipper Truck

DRIVE TYPE 8×4

PRODUCT NAME Telescopic Hydraulic Hoist Cylinder

INQUIRY NOW WHATSAPP

Configuration, export documentation and worldwide delivery support are available.

Verified sourcingExport documentsGlobal delivery

PRODUCT DETAILS

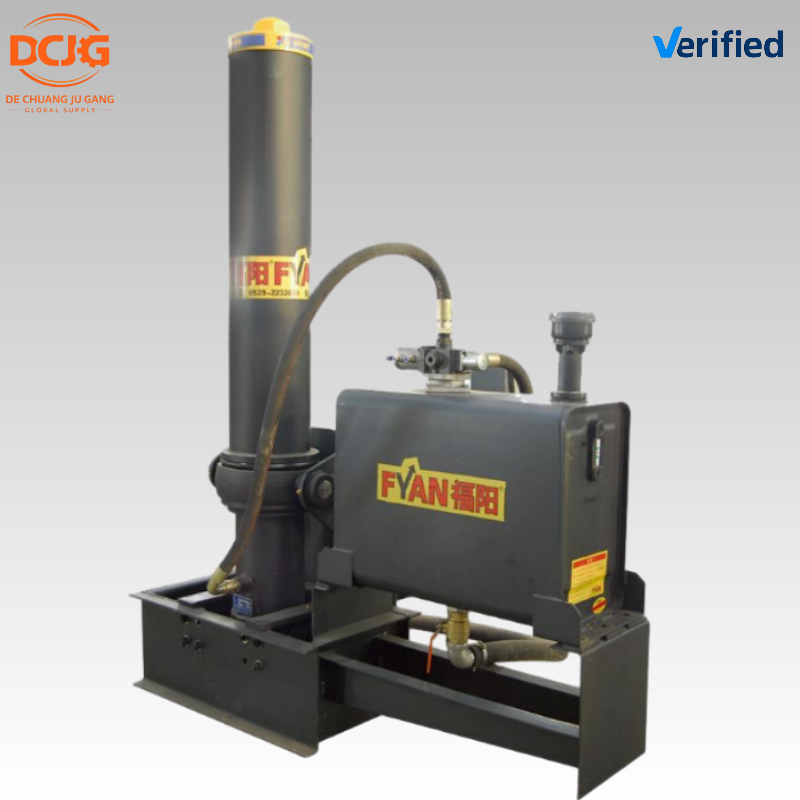

DECHUANG ZX01017FY196 SHACMAN Hydraulic Hoist Cylinder

FC196-4-05390-001A-K0343 Telescopic Hydraulic Cylinder

Part Number: ZX01017FY196
Cylinder Model: FC196-4-05390-001A-K0343
Product: Front-End Telescopic Hydraulic Hoist Cylinder
Cylinder Brand: FYAN
Confirmed Truck: SHACMAN SX33156V366CR
Drive Type: 8×4
Application: Heavy Duty Dump Truck / Tipper Truck
Cylinder Series: FC196
Number of Stages: 4 Stages
Nominal Stroke: 5390 mm
System: Dump Body Hydraulic Lifting System
Function: Dump Body Lifting and Tipping
Condition: New
Supplier: DECHUANG

DECHUANG ZX01017FY196 hydraulic hoist cylinder, corresponding to cylinder model FC196-4-05390-001A-K0343, is designed for compatible SHACMAN heavy-duty dump truck hydraulic lifting systems.

Vehicle commissioning documentation confirms the FC196-4-05390-001A-K0343 cylinder hoist on a SHACMAN SX33156V366CR 8×4 dump truck. This makes the model particularly relevant for replacement and maintenance of compatible SHACMAN heavy-duty tipper hydraulic systems.

Product Specifications

Product Name	Telescopic Hydraulic Hoist Cylinder
SHACMAN Part Number	ZX01017FY196
Cylinder Model	FC196-4-05390-001A-K0343
Supplier Brand	DECHUANG
Cylinder Brand	FYAN
Cylinder Series	FC196
Product Type	Front-End Multi-Stage Telescopic Hydraulic Cylinder
Number of Stages	4 Stages
Nominal Stroke	5390 mm
Confirmed Truck Brand	SHACMAN
Confirmed Truck Model	SX33156V366CR
Drive Configuration	8×4
Vehicle Type	Heavy Duty Dump Truck / Tipper Truck
System	Dump Body Hydraulic Lifting System
Function	Dump Body Lifting and Tipping
Condition	New
Product Category	Chassis Parts / Hydraulic System Parts

Applications

DECHUANG ZX01017FY196 / FC196-4-05390-001A-K0343 telescopic hydraulic cylinder is used in compatible SHACMAN heavy-duty dump truck and tipper truck hydraulic lifting systems.

The FC196-4-05390-001A-K0343 cylinder is confirmed in vehicle commissioning documentation as the cylinder hoist installed on a SHACMAN SX33156V366CR 8×4 heavy-duty dump truck.

The cylinder is installed in the dump body lifting system and converts hydraulic pressure into linear lifting force. During unloading, the telescopic stages extend sequentially to raise the cargo body to the required tipping angle.

The FC196 configuration uses a multi-stage telescopic design. The 4-stage construction provides a long nominal 5390 mm stroke while maintaining a substantially shorter retracted installation length than a conventional single-stage cylinder.

This type of hydraulic hoist cylinder is suitable for heavy-duty dump trucks operating in mining, construction, infrastructure development, earthmoving, quarrying and bulk material transportation.

The cylinder can be supplied for replacement of a compatible damaged or worn hoist cylinder and for maintenance of existing SHACMAN dump truck hydraulic tipping systems.

Truck model alone should not be used to determine hydraulic cylinder compatibility. Dump body dimensions, mounting arrangement, original cylinder model and hydraulic system configuration should also be checked.

Before ordering, please confirm both ZX01017FY196 and FC196-4-05390-001A-K0343 whenever possible. Customers can also provide the truck VIN, chassis model, original cylinder nameplate and installation photos for additional verification.

DECHUANG can supply related dump truck hydraulic components including hydraulic pumps, proportional control valves, limit valves, hydraulic oil tanks, hoses, brackets and complete tipping system components.
