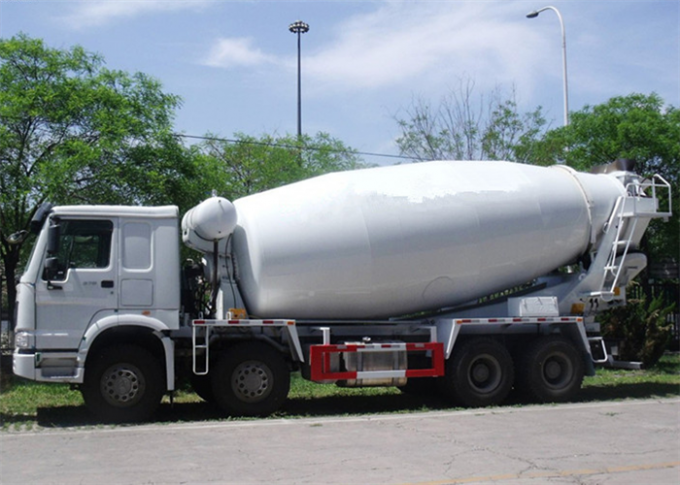

10CBM SINOTRUK HOWO Cement Mixer Truck

Main Specifications

Product Name	10CBM SINOTRUK HOWO Cement Mixer Truck
Supplier Brand	DECHUANG
Truck Brand	SINOTRUK HOWO
Vehicle Type	Concrete Mixer Truck / Cement Mixer Truck
Drive Type	8×4
Steering Position	Left-Hand Drive
Curb Weight	25000 kg
Wheelbase	4350+1350 mm
Overall Dimensions	9580 × 2496 × 3980 mm
Front / Rear Overhang	1500 / 2605 mm
Approach / Departure Angle	16° / 16°
Axle Load	7000 / 16000 / 16000 kg
Maximum Driving Speed	90 km/h
Engine Power	248 kW / 371 HP
Emission Standard	Euro 2
Transmission	10 Forward + 2 Reverse with PTO
Clutch	Reinforced Diaphragm Clutch
Brake System	Dual-Circuit Compressed Air Brake
Parking Brake	Spring Energy Brake, Compressed Air Operating on Rear Wheels
Steering Gear	Hydraulic Power Steering
Tire Specification	12.00R20
Number of Tires	10 Pieces with One Spare Tire
Battery	2 × 12V
Starter Motor Capacity	24V
Fuel Tank	400 L
Cabin	Three-Person Cabin with Air Conditioner
Mixer Drum Capacity	8.0 CBM / 10.0 CBM
Mixer Drum Material	Manganese Steel, 5 mm Thickness
Feeding Speed	≥2.8 m³/min
Discharging Speed	≥2 m³/min
Discharging Residual Rate	≤0.5%
Mixer Tank Rotating Speed	0–17 rpm
Discharging Range	180° Full Range
Hydraulic Pump	US SAUER DANFOSS Brand
Hydraulic Motor	US SAUER DANFOSS Brand
Reducer	Italy PMP Brand
Radiator	China Local Brand KLMAKE
Water Tank Capacity	400 L
Water Supply Type	Pneumatic Water Supply
Control Way	Connecting Rod Controlling
Color	Optional
Application	Ready-Mix Concrete Transportation / Construction Projects
Condition	New

Applications

10CBM SINOTRUK HOWO cement mixer truck is designed for transporting ready-mix concrete from concrete batching plants to construction sites.

The 8×4 chassis configuration provides strong load distribution for concrete transport, making it suitable for construction sites, road projects, bridge projects, municipal engineering and infrastructure development.

The 8.0CBM / 10.0CBM mixer drum capacity is suitable for medium and heavy-duty concrete delivery operations.

The hydraulic drive system includes hydraulic pump, hydraulic motor, reducer and radiator, supporting stable drum rotation during concrete transportation and discharge.

The manganese steel mixer drum with 5 mm thickness is designed for concrete mixing and transport applications where durability and wear resistance are required.

Typical applications include ready-mix concrete plants, commercial building projects, road construction, bridge construction, industrial parks and urban construction projects.

Before ordering, customers should confirm mixer drum capacity, steering position, engine configuration, emission requirement, hydraulic system brand and destination country regulations.

Why Choose DECHUANG

DECHUANG supplies HOWO concrete mixer trucks, dump trucks, tractor trucks and special-purpose vehicles for international commercial vehicle markets.

We support configuration matching according to mixer capacity, chassis type, hydraulic system requirement, road condition and destination market.

Our supply scope also includes engines, transmissions, axle components, hydraulic system parts, cab parts and chassis spare parts for long-term operation.

DECHUANG supports B2B supply for ready-mix concrete companies, construction contractors, infrastructure projects, transportation fleets and commercial vehicle distributors.
