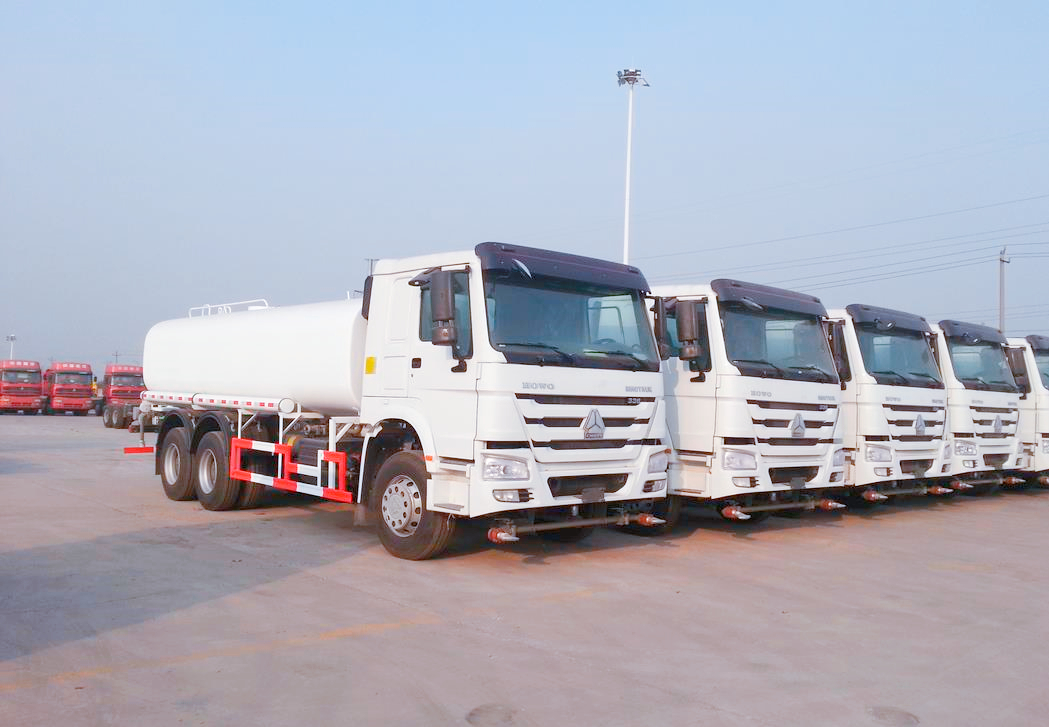

SINOTRUK HOWO 6×4 20000L Water Tanker Truck ZZ1257N4641W

Main Specifications

Product Name	SINOTRUK HOWO 6×4 20000L Water Tanker Truck
Truck Model	ZZ1257N4641W
Supplier Brand	DECHUANG
Truck Brand	SINOTRUK HOWO
Vehicle Type	Water Tanker Truck / Sprinkler Truck
Drive Type	6×4
Tank Volume	20000 L
Tank Body Thickness	5 mm
End Plate Thickness	6 mm
Baffle Plate Thickness	6 mm
Top of Tank	Folding Armrest
Fire Extinguisher	2 Pieces
Spraying Function	Front Flushing and Rear Sprinkling
Sprinkler Cannon Rotation	360°
Sprinkler Cannon Range	15–30 m
Water Sprinkling Width	≥14 m
Optional Equipment	20 m Greening Reel Available
Overall Dimensions	10350 × 2496 × 3500 mm
Wheelbase	4600+1350 mm
Maximum Speed	90 km/h
Curb Weight	13540 kg
Loading Weight	20000 kg
Engine Model	WP10.400E22
Engine Type	Water-Cooled, 4-Stroke, 6-Cylinder In-Line, Turbocharged, Direct Injection
Fuel Type	Diesel
Engine Power	400 HP
Emission Standard	Euro II
Transmission	HW19710
Gear Configuration	10 Forward + 2 Reverse
Service Brake	Dual-Circuit Compressed Air Brake
Parking Brake	Spring Energy, Compressed Air Operating on Rear Wheels
Steering System	ZF8118 Hydraulic Power Steering
Front Axle	VGD95 Drum Type Front Axle
Rear Axle	HC16 Casting Axle, 2 × 16 Tons
Tire Specification	315/80R22.5
Number of Tires	11 Pieces Including One Spare Tire
Battery	2 × 12V / 165Ah
Starter	7.5 kW / 24V
Cab	HW76 Cab, One Sleeper, with Air Conditioner
Application	Road Sprinkling / Dust Suppression / Greening / Site Watering
Condition	New

Applications

SINOTRUK HOWO 6×4 20000L water tanker truck is designed for urban road sprinkling, mining site watering, dust suppression and construction site water supply.

The 20000L tank volume supports medium- and heavy-duty water transportation and sprinkling operations for municipal sanitation, industrial sites and infrastructure projects.

The vehicle is equipped with front flushing and rear sprinkling functions, and the rear sprinkler cannon can rotate 360° with a spraying range of 15–30 meters.

The water sprinkling width is ≥14 meters, making the truck suitable for road cleaning, dust control and large-area watering operations.

The WP10.400E22 diesel engine, HW19710 transmission, VGD95 front axle and HC16 rear axle configuration provide the powertrain and chassis support required for 6×4 water tanker operation.

The tank body uses 5 mm plate thickness with 6 mm end plates and 6 mm baffle plates. Internal baffles help reduce liquid impact during vehicle operation.

Typical applications include urban street watering, construction site dust suppression, mining area watering, road cleaning, landscaping irrigation, emergency water supply and industrial park maintenance.

Before ordering, customers should confirm tank material, tank compartment layout, pump brand, spray function, optional greening reel, steering position and destination country requirements.
