SHACMAN X3000 6×4 Dump Truck
SX32556T384C SX32595D404 SX32556T404
Configuration, export documentation and worldwide delivery support are available.
PRODUCT DETAILS
| SHACMAN X3000 6X4 DUMP TRUCK | |
| Model | SX32595D404 |
| Drive type: | 6X4 |
| Wheelbase: | 3975+1400mm |
| Engine: | WP12.400E62 |
| Transmission: | Fast 12JSD200T |
| Rear axle ratio: | 5.262 |
| Vehicle length: | 8.55 meters |
| Vehicle width: | 2.55 meters |
| Vehicle height: | 3.5 meters |
| Front track: | 2036mm |
| Rear track: | 1860/1860mm |
| Total vehicle weight: | 12.5 tons |
| Rated load: | 12.37 tons |
| Total mass: | 25 tons |
| Tonnage class: | Heavy trucks |
| Approach angle: | 17 degrees (°) |
| Departure angle: | 24 degrees (°) |
| Place of origin: | Xi’an, Shaanxi |
| Energy type: | Diesel fuel |
| Engine model: | WP12.400E62 |
| Engine brand: | Weichai |
| Number of cylinders: | 6 cylinders |
| Fuel type: | Diesel fuel |
| Displacement: | 11.6L |
| Emission standards: | National VI |
| Maximum horsepower: | 400 HP |
| Maximum output power: | 294kW |
| Maximum torque: | 2000N·m |
| Maximum torque speed: | 1000-1400rpm |
| Rated speed: | 1900rpm |
| Maximum torque: | CR+DOC+DPF+Hi_SCR |
| Transmission model: | Fast12JSD200T |
| Gearbox brand: | Fast |
| Gear shifting method: | Manual |
| Forward gears: | 12 gears |
| Reverse gears: | 2 |
| Cargo box length: | 5.6 meters |
| Cargo box width: | 2.35 meters |
| Cargo box height: | 1.5 meters |
| Cargo box type: | Self-unloading |
| Unloading method: | Self-unloading |
| Driver’s cab: | Medium-length flat top |
| Cab width: | 2490mm |
| Passenger capacity: | 2 people |
| Fuel tank material: | Aluminum alloy |
| Fuel tank capacity: | 400L |
| Front axle allowable load: | 7000kg |
| Rear axle description: | 16TMAN |
| Rear axle allowable load: | 18000(Two-axis assembly)kg |
| Speed ratio: | 5.262 |
| Number of leaf springs: | 10/12 |
| Tire specifications: | 12.00R20 16PR,11.00R20 18PR,12R22.5 18PR |
| Number of tires: | 10 |
Product Introduction

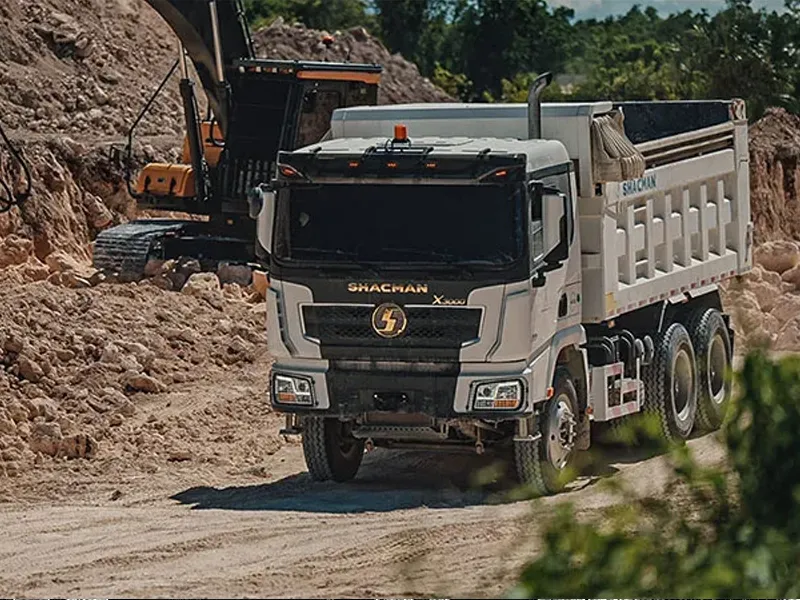

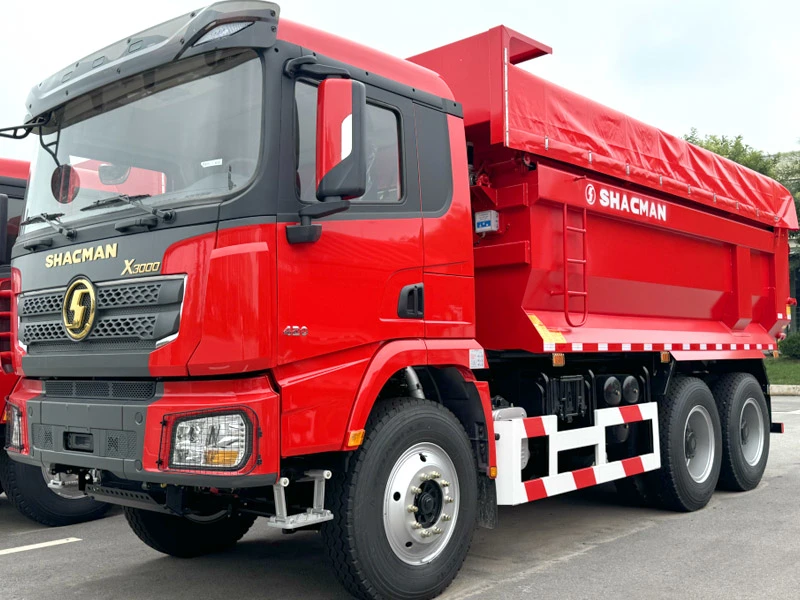

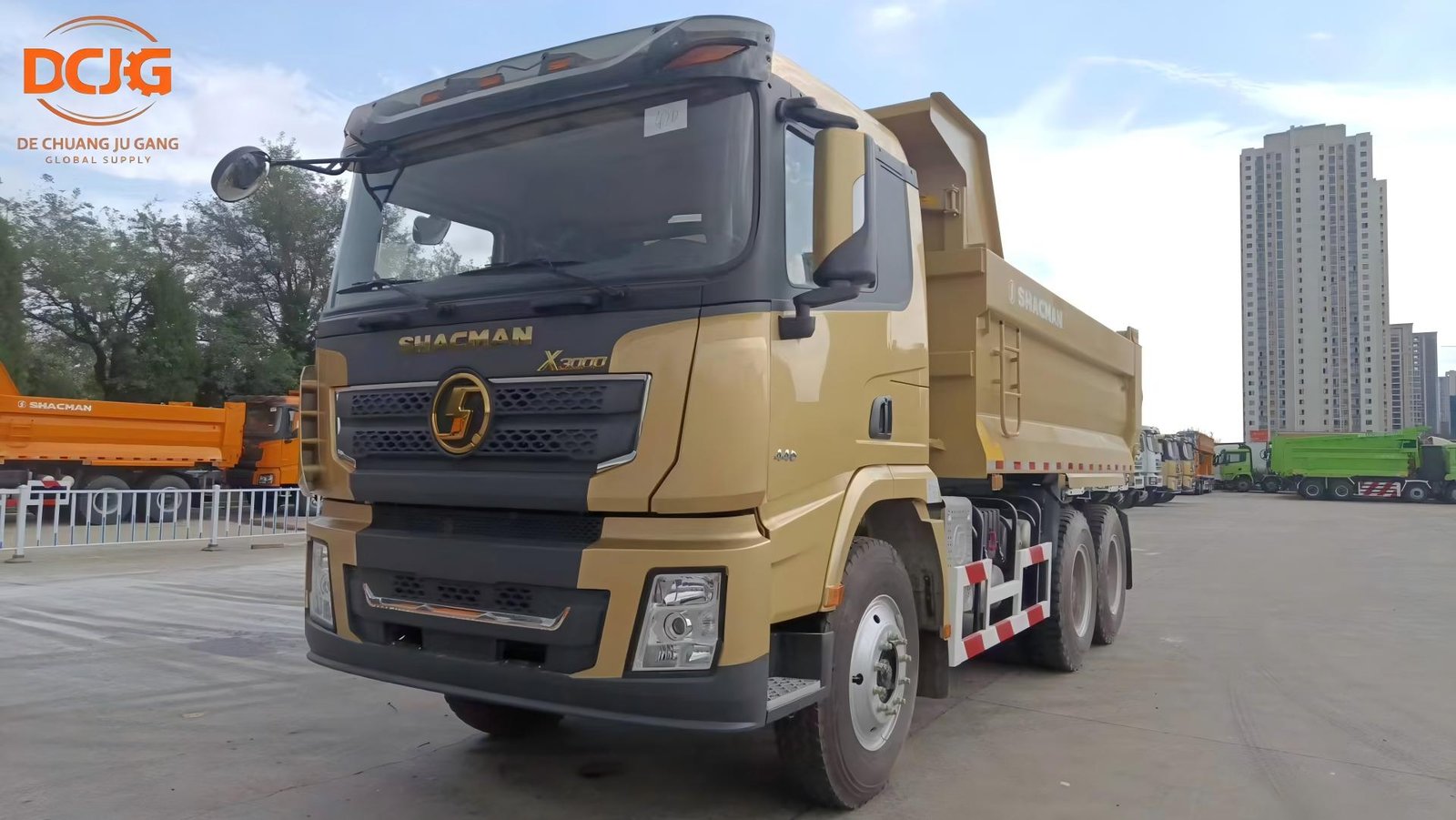

The SHACMAN X3000 6×4 Dump Truck is a heavy-duty vehicle specially designed for mining, construction, and bulk material transportation.
With a reinforced chassis, powerful engine options, and reliable drivetrain system, the X3000 series provides excellent durability, high loading efficiency, and stable performance in harsh working environments.
This model is widely used in overseas markets for transporting sand, gravel, ore, coal, and construction materials, especially in mining areas and large-scale infrastructure projects.
Product Specifications
| Item | Specification |
|---|---|
| Brand | SHACMAN |
| Model | X3000 |
| Vehicle Type | 6×4 Dump Truck |
| Drive Type | 6×4 |
| Compatible Models | SX32556T384C / SX32595D404 / SX32556T404 |
| Application | Mining / Construction / Heavy Material Transportation |
| Cab Type | SHACMAN X3000 Heavy Duty Cab |
| Transmission | FAST Heavy Duty Transmission |
| Brake System | Air Brake System |
| Suspension | Heavy Duty Leaf Spring Suspension |
| Fuel Type | Diesel |
Available Configurations
| Model | Wheelbase | Engine |
|---|---|---|
| SX32556T384C | 3775+1400mm | Cummins 420HP Euro III |
| SX32595D404 | 3975+1400mm | WEICHAI WP12 400HP Euro V |
| SX32556T404 | Long Wheelbase Version | WEICHAI 380HP Euro V |
Applications
The SHACMAN X3000 6×4 Dump Truck is suitable for:
- Mining material transportation
- Quarry operations
- Construction projects
- Sand and gravel transportation
- Infrastructure engineering
- Bulk cargo hauling
Southeast Asia market applications:
- Indonesia mining and industrial projects
- Malaysia construction transportation
- Philippines infrastructure projects
- Thailand heavy material logistics
The X3000 series offers strong reliability, efficient operation, and excellent adaptability for overseas working conditions.
Why Choose Us
- Professional SHACMAN truck export supplier
- Factory-direct supply with competitive pricing
- Original SHACMAN quality and reliable configurations
- Customized specifications according to customer requirements
- Experience in Southeast Asia mining and industrial projects
- Complete export service including logistics and after-sales support
We provide:
- SHACMAN Dump Truck
- Heavy Duty Truck Solutions
- Truck Spare Parts Supply
- Overseas Transportation Solutions
Contact Us
WhatsApp: +86 153 4928 5748
Website:
www.dechuangsupplychain.com
Alibaba International Store:
https://sxdcjgmy.en.alibaba.com
Request a quotation for this truck.
Send the required quantity, destination port and any optional configuration. Our team will confirm the specification and delivery plan.
